Architecture
This page describes the system topology for the Oversight beta release, including all major components, data flows, and external dependencies.

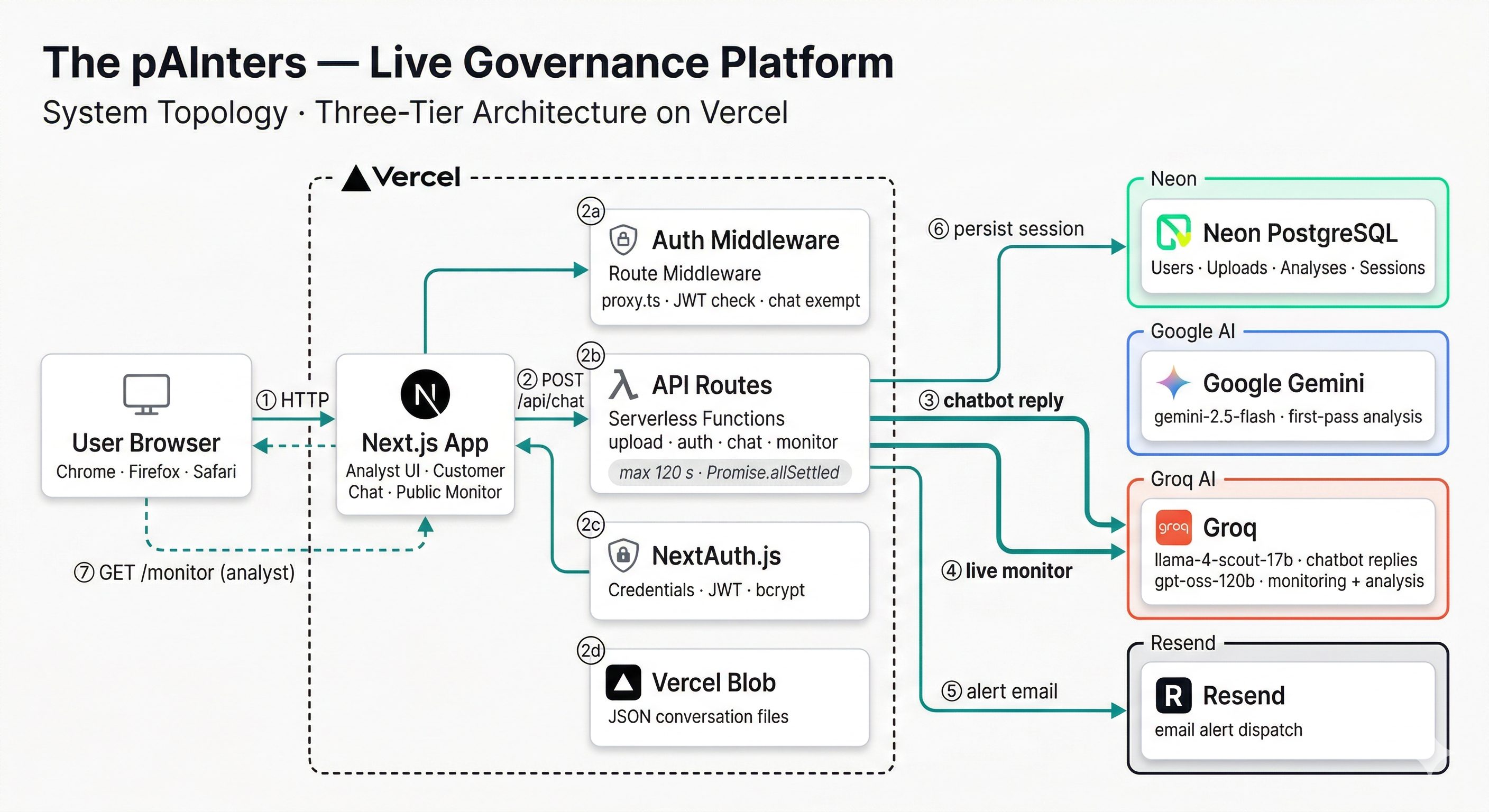

Architecture Diagram
System Overview
Oversight is a full-stack Next.js application deployed on Vercel. The application uses the App Router for both the frontend pages and API routes, communicates with external LLM providers for analysis, and stores data in a PostgreSQL database hosted on Neon.
Core Components
| Component | Technology | Purpose |
|---|---|---|
| Frontend | Next.js 16 App Router, React 19, Tailwind CSS 4 | All user-facing pages (upload, dashboard, chat, monitor, trends, settings) |
| API Layer | Next.js API Routes (serverless) | 18 API endpoints handling auth, uploads, chat, analysis, monitoring, settings |
| Core Logic | TypeScript modules in lib/ | Analysis pipeline, live monitoring, chat reply generation, email alerts, rate limiting |
| Database | PostgreSQL via Neon | All persistent data (users, uploads, analyses, chat sessions, settings) |
| ORM | Prisma 7 with Neon adapter | Database access with connection pooling |
| Authentication | NextAuth.js v5 (beta) | Email/password auth, JWT sessions, bcrypt password hashing |
| File Storage | Vercel Blob | Uploaded JSON conversation files |
| Resend | Analyst alert notifications |
External LLM Providers
| Provider | Models | Used For |
|---|---|---|
| Google Gemini | gemini-2.5-flash, gemini-3.1-flash-lite (fallback) | Hallucination, bias, and toxicity analysis in Gemini and Both modes |
| Groq | openai/gpt-oss-120b, Kimi K2 variants (fallback) | Analysis in Groq and Both modes, live monitoring, chatbot reply generation |
Data Flow
- File Upload Flow: User → Upload Page →
POST /api/upload→ Vercel Blob (file storage) →lib/run-analysis.ts→ Gemini/Groq API → Analysis results → PostgreSQL - Chat Flow: Customer → Chat Page →
POST /api/chat→ Groq (bot reply) →lib/live-monitor.ts→ Groq (monitoring) → PostgreSQL (message + monitoring data) - Alert Flow: Chat session completes →
lib/run-analysis.ts(full analysis) →lib/send-alert-email.ts→ Resend API → Analyst inbox
Database Schema
The database consists of 9 models:
| Model | Purpose | Key Relations |
|---|---|---|
| User | Analyst accounts (email, password hash, name) | Has many: Uploads, Feedbacks, GroundTruths; Has one: UserPreferences |
| UserPreferences | Per-user settings (default mode, alert email, bias threshold, T&C acceptance) | Belongs to: User |
| Upload | A conversation file upload or chat-sourced analysis | Belongs to: User (optional), GroundTruth (optional); Has many: Analyses; Has one: ChatSession |
| Analysis | A single analysis result (e.g., hallucination-gemini) | Belongs to: Upload |
| ChatSession | A live chatbot conversation session | Has many: ChatMessages; Has one: Upload |
| ChatMessage | A single message in a chat session (with optional monitoring data) | Belongs to: ChatSession |
| GroundTruth | A reference document for factual verification | Belongs to: User (optional); Has many: Uploads |
| Feedback | In-app user feedback (bug/feature/general) | Belongs to: User |
| RateLimit | Per-user/IP rate limiting counters | Unique on: (identifier, type) |
Architecture Rationale
The system topology is unchanged since the alpha release. The same components — Next.js, Neon PostgreSQL, Vercel Blob, Google Gemini, Groq Llama, Resend, and NextAuth — remain in the same architectural positions. No components were added, removed, or re-positioned, and no new external services were introduced.
The alpha release served as a validation milestone for the full architecture. Through alpha testing, we confirmed that:
- The dual-LLM analysis pipeline (Gemini + Groq with cross-checking) produces reliable detection results across all three categories
- Vercel serverless functions handle the analysis workload within the 120-second timeout, including "Both" mode which runs providers sequentially
- Neon connection pooling via the Prisma adapter handles concurrent database access without connection exhaustion
- Live chat monitoring delivers real-time per-message checks with acceptable latency for the customer-facing chatbot
Alpha testing also helped us identify and document known issues. A formal bug severity audit classified all discovered bugs by severity (Critical, High, Medium, Low). The key finding was that zero Critical or High severity bugs remained open — all were either resolved or classified as Medium/Low with documented mitigations:
| Bug ID | Severity | Description | Status |
|---|---|---|---|
| BUG-001 | Medium | Simulated progress bar does not reflect actual backend progress | Documented; deferred to GA |
| BUG-002 | High | No rate limiting on public chat API | Resolved — enforces 5/min, 40/day per IP |
| BUG-003 | Medium | Session completion endpoint lacks ownership check | Mitigated by CUID non-enumerability |
| BUG-004 | Low | Chat-originated uploads have null userId | Accepted trade-off for internal analyst scope |
| BUG-005 | Low | Vercel Blob URLs are publicly accessible if known | Accepted; non-enumerable filenames |
This validation gave us confidence that the architecture is sound for beta release without structural changes.
